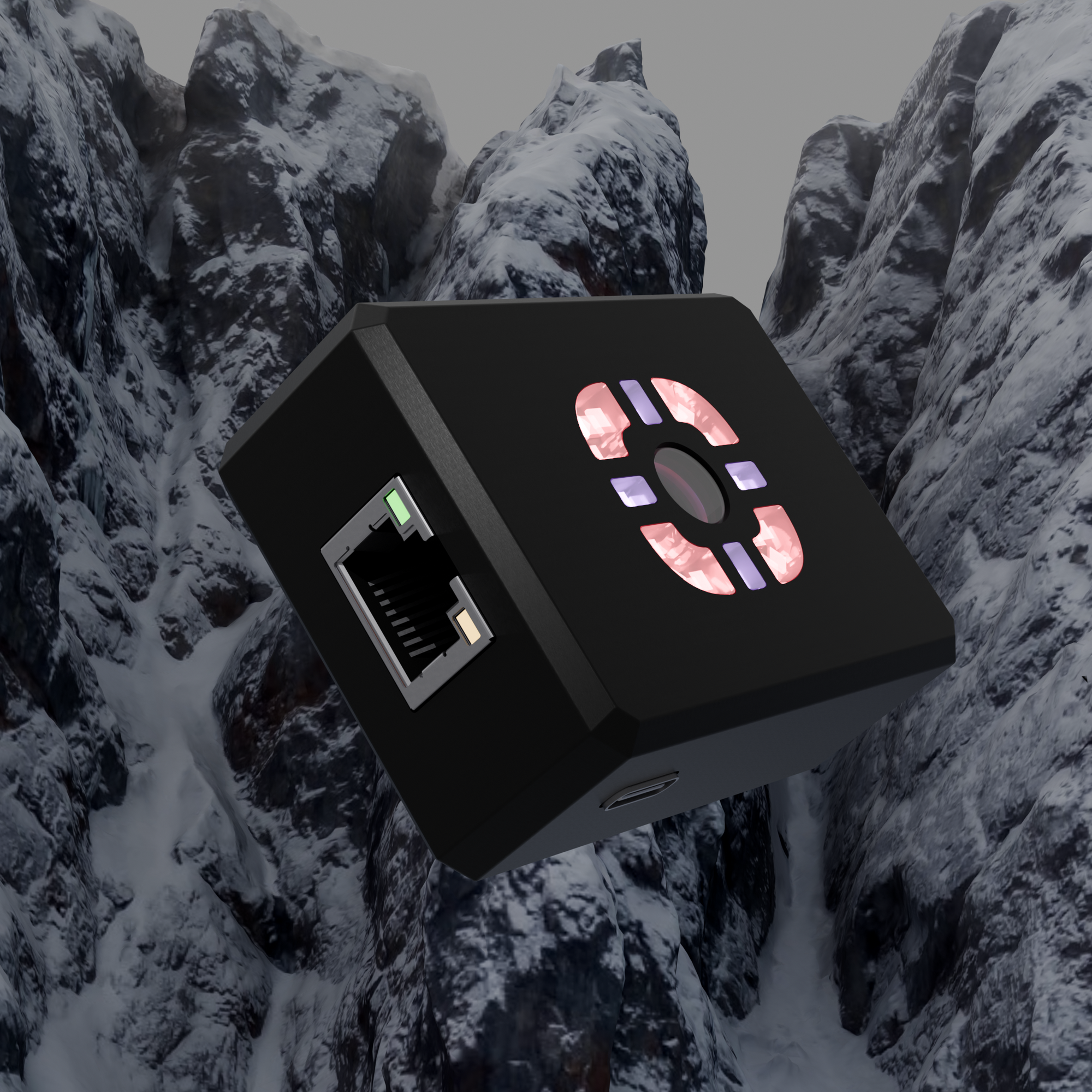

Helios Vision System - Flame
$350.00
- 2.5v to 36v Buck Boost Converter (42v absolute max)
- Reverse Polarity Protection
- ESD Protection on all ports
- Back feed protection
- Over current protection
- Multi power source support
- Passive POE support
- Direct DC
- USB C power
- Dedicated power monitoring IC
- Dedicated operating system
- Simultaneous pipeline support, run several pipelines all on one camera sensor
- Build custom pipelines using a node graph editor
- Multi camera tethering over USB
- Mutli camera orchestration, have several cameras work together
- External USB cameras supported
- Direct desktop access over USB C
- 2x USB C
- 1x USB A
- 1G Ethernet
- 9 axis IMU
- 16 Addressable LEDS
- 120 FPS monochrome capture @ 1200x800
- Tiny footprint (60mm X 45mm X 24mm)
- Anodized CNC aluminum enclosure
